You are bidding on
an Asus K7M Motherboard.
This board was used
for two months. This board works perfect.
The K7M board will
accept the new AMD Athlon Processors up to 1ghz. with 200mhz FSB.

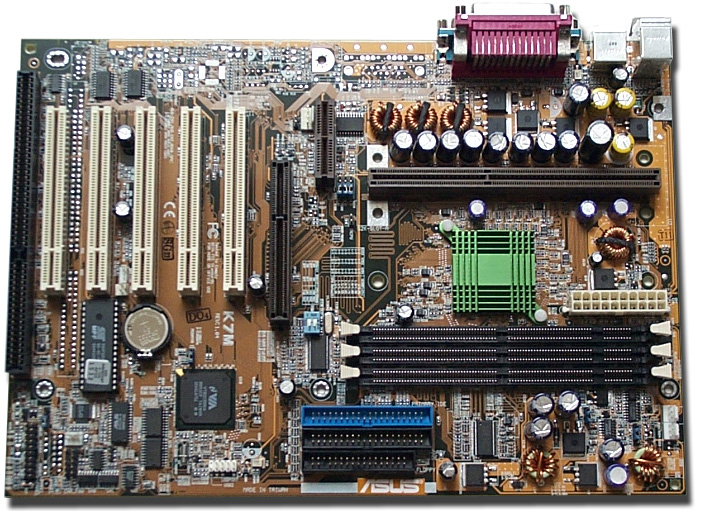

Click Picture for larger view.
- Chipset North
Bridge: AMD 751, 2X AGP South Bridge & Super I/O: VIA 82C686A
- CPU: K7 500Mhz - 1Ghz
- Bus Speeds:
90/95/101/102/103/104/105/106/107/108/109/110/111/112/113/114/115/116/117
118/119/120/121/122/123/124/125/133/140/150
- 3 DIMM Sockets, maximum 768MB total
memory.
- Expansion Slots: 1 AGP + 1 AMR + 5 PCI
+ 1 ISA
- H/W Monitoring Chip: Winbond W83782D
- IDE Ultra DMA 66/33, dual channels
support up to 4 ATAPI devices
- Other Features: WOL, WOR, Chassis
Intrusion, Power Loss Restart, JumperFree
- PCI2.2
- Internal I/O Interfaces Ir Connector,
20pin ASUS Panel Connector or 14pin
- I/O Ports: 2 Serial Ports, 1 ECP/EPP/SPP
Parallel Port, PS/2 Keyboard and Mouse Connector, 2 USB Ports (4 USB Ports
with included adapter)
- BIOS Features: 2Mb Flash ROM, AMI BIOS,
PnP, DMI2.3, WfM2.0, PC99 Compliant, CPU/SDRAM Speed Adjustable
- Form Factor : ATX
- Board Size : 12 inch x 8.4 inch
If you have any questions,
please e-mail me at [email protected].
